Custom Content Management System

Full-Stack Web Application for Youth Scout Organization

Project Overview

This project represents a complete ground-up rebuild of a content management system specifically designed for a Belgian youth scout organization (Menapiers). The previous legacy system had become outdated, difficult to maintain, and lacked modern security practices (such as SQL injection proofing, causing a total deletion of the database) and flexibility. This comprehensive rebuild modernizes the entire infrastructure while preserving familiar workflows for existing users.

The CMS manages all aspects of the organization's web presence including page content, media assets, calendar events, team member profiles, social media integration, and website analytics. The system handles lots pages, hunderds of images and files, and serves multiple user roles with different permission levels. As of writing this, it gets around ~150 visitors daily.

Project Scope

Database architecture design and implementation
Complete backend system development in PHP
Responsive frontend interface with Bootstrap 4
Data migration from legacy system
Security implementation and hardening
User training and documentation

Technology Stack

Backend Technologies

PHP 7.4+ - Server-side scripting with object-oriented patterns
MySQL/MariaDB - Relational database with normalized schema design
Session-based Authentication - Secure token management with database persistence
RESTful API Architecture - AJAX endpoints for asynchronous operations

Frontend Technologies

Bootstrap 4.6 - Responsive CSS framework customized for CMS interface
jQuery 3.7 - DOM manipulation and AJAX request handling
jQuery UI - Drag-and-drop functionality for content reordering
Font Awesome 5.15 - Comprehensive icon library
TinyMCE 6.8 - WYSIWYG rich text editor with custom extensions

External Integrations

Google Analytics 4 API - Website statistics and visitor data
Google Fonts API - Dynamic typography management
iCalendar Format - Calendar export functionality
Social Media APIs - Feed integration and content sharing

System Architecture

Modular MVC-Inspired Structure

The application follows a modular architecture where each functional area operates as an independent module. This design pattern enables easy maintenance, testing, and future expansion without affecting other parts of the system.

Module Structure

Each module directory contains:

index.php - Module entry point with iframe-based navigation
content.php - Main view rendering and UI components
action.php - Server-side form processing and data manipulation
action_ajax.php - Asynchronous request handlers for real-time updates

Database Architecture

Normalized relational database schema with proper foreign key relationships, indexing for performance, and data integrity constraints. The database includes approximately 30+ tables organized into logical groups.

Security Implementation

Multi-layered security approach protecting against common web vulnerabilities:

Authentication & Authorization

Secure password hashing
Session-based authentication with secure cookie settings
Token-based session management with database persistence and expiration
Failed login attempt tracking with account lockout mechanism
Session regeneration after successful authentication
Automatic session timeout and cleanup
Role-based access control with granular permissions

Input Validation & Sanitization

Prepared statements for all database queries preventing SQL injection
Input filtering with filter_var() and type validation
Output escaping with htmlspecialchars() preventing XSS attacks
File upload validation including type checking, size limits, and MIME type verification
URL validation and sanitization
CSRF token validation on all state-changing operations

Password Management

Self-service password reset with time-limited tokens
Force password reset functionality for administrators
Password visibility toggle with browser compatibility handling
Secure password field clearing on page unload

Core Features - Detailed Breakdown

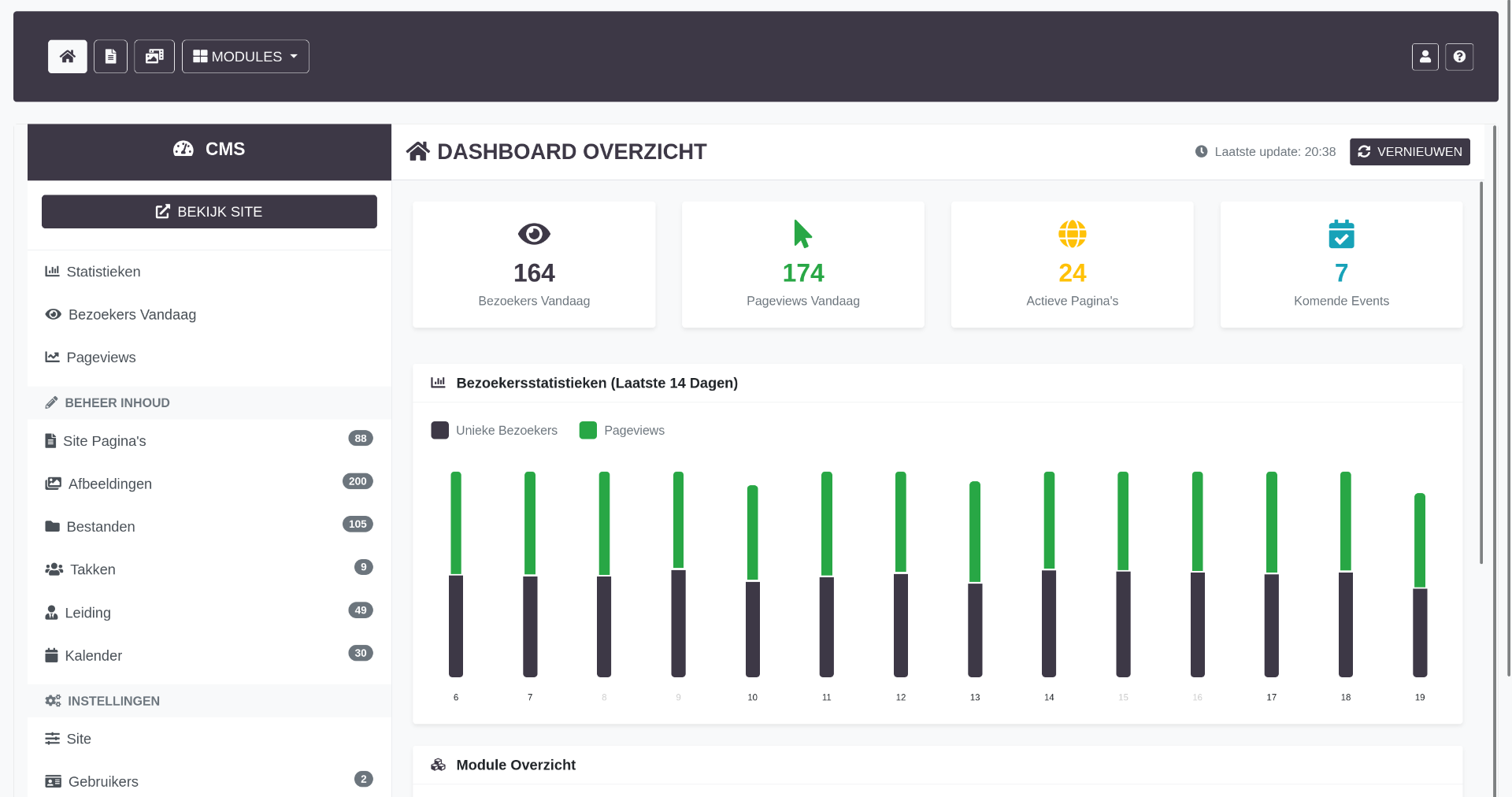

1. Dashboard Module

Central hub displaying real-time statistics and quick access to all CMS functions. The dashboard provides an overview of content status, recent activity, and system health.

Dashboard Features

Real-time content statistics (total pages, active pages, total images, files, events)
Quick action buttons for common tasks
Recent activity feed showing latest content changes
System status indicators
User session information
Module access cards with direct navigation

Technical Implementation

Dynamic data loading using prepared statements
Real-time count aggregation from multiple database tables
Responsive card-based layout with Bootstrap grid
AJAX updates for statistics without page reload

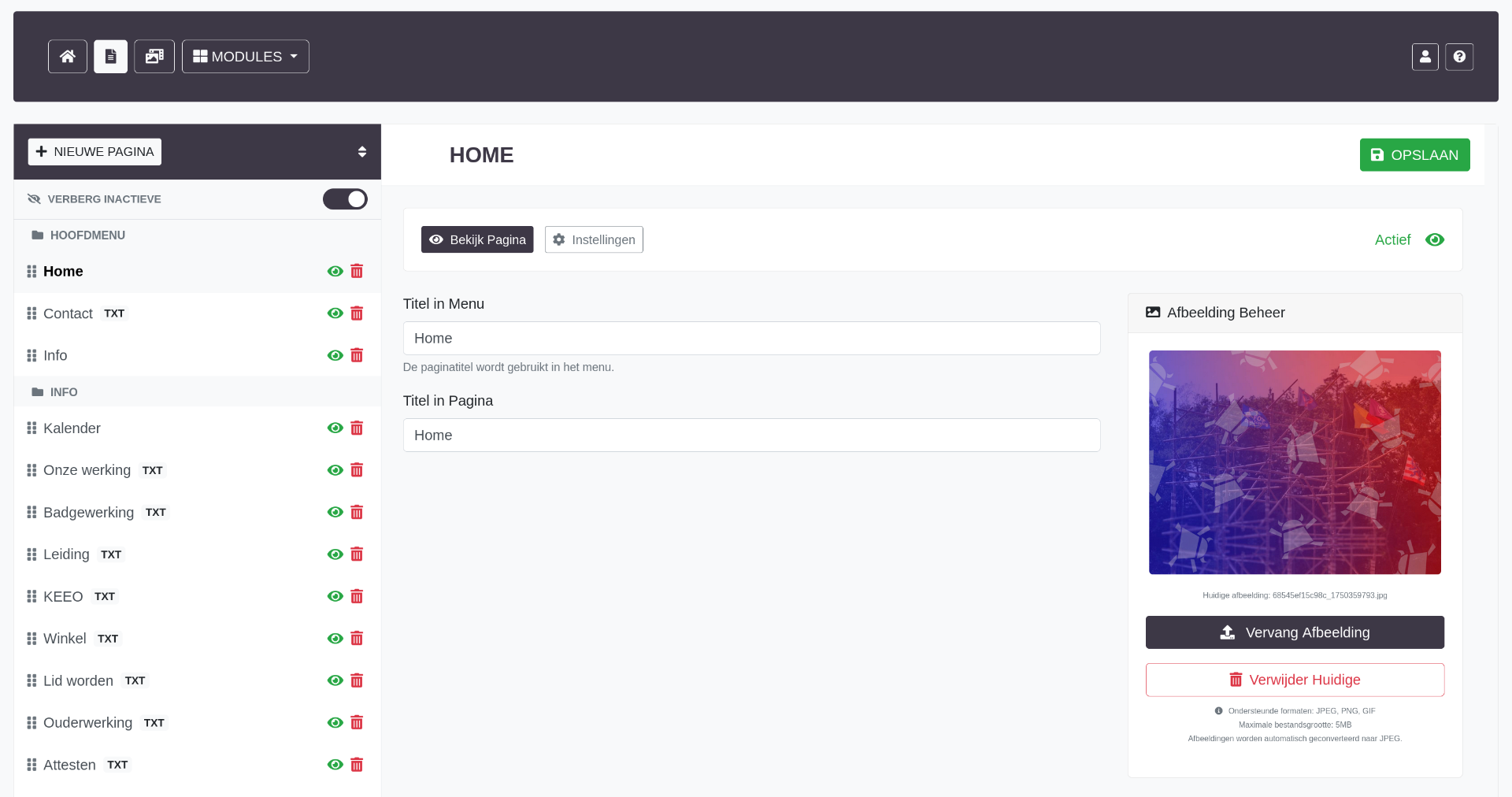

2. Page Management Module (Paginas)

Comprehensive page management system with hierarchical structure, drag-and-drop reordering, and flexible content modules. Handles the entire website structure including navigation menus and subpage relationships.

Page Management Features

Hierarchical Page Structure - Parent/child relationships with unlimited nesting
Menu Segment Organization - Pages grouped into navigation segments (menus)
Drag-and-Drop Reordering - jQuery UI sortable for intuitive page ordering
Visibility Controls - Active/inactive status, show/hide in navigation
SEO Management - Custom URLs, meta descriptions, page titles
Content Modules - Flexible page items system for varied layouts
Version Control - Track changes and modifications

Page Content System

Each page can contain multiple content items (modules) of different types:

Text Modules - Rich text content with WYSIWYG editor
Image Modules - Single or multiple images with captions
Gallery Modules - Photo galleries with lightbox functionality
Video Modules - Embedded video content
Custom HTML Modules - Advanced users can add custom code

Technical Implementation

Three-level hierarchy: Segments (menus) -> Pages -> Subpages
AJAX-based page tree with real-time updates
Position tracking with automatic reordering on drag-drop
URL slug generation with uniqueness validation
Modal-based editing interface for quick updates
TinyMCE integration with custom toolbar and plugins
Image handling with automatic resizing and optimization

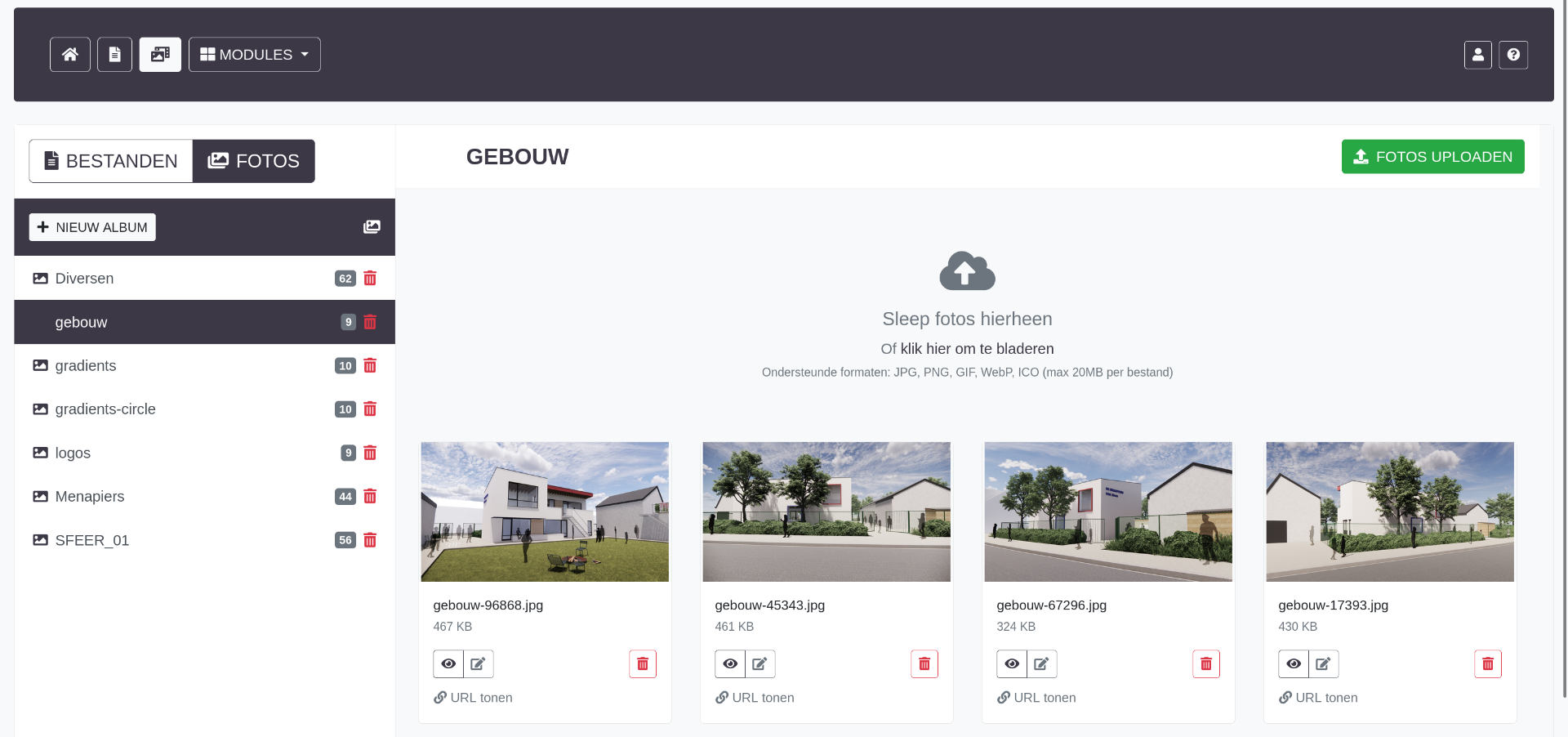

3. Media Library Module

Centralized asset management system for all images and files used across the website. Supports categorization, batch uploads, and usage tracking.

Media Library Features

Dual Media Types - Separate management for images (md_imgs) and files (md_fils)
Category Organization - Custom categories with color coding
Batch Upload - Multiple file upload with progress tracking
Drag-and-Drop Upload - Modern HTML5 drag-drop interface
Image Optimization - Automatic resizing and compression
Usage Tracking - Track where media is used across the site
Grid/List Views - Multiple viewing options for browsing
Quick Preview - Hover or click preview functionality
Bulk Operations - Move, delete, or categorize multiple items

File Management

PDF, DOC, ZIP, and other document types supported
File size tracking and limits
Download counter
MIME type validation

Technical Implementation

jQuery File Upload plugin for advanced upload features
AJAX-based drag-and-drop with visual feedback
Progress bars for upload status
Server-side validation and security checks
Sortable media grid with jQuery UI
Modal-based image editor
Database tracking of file metadata

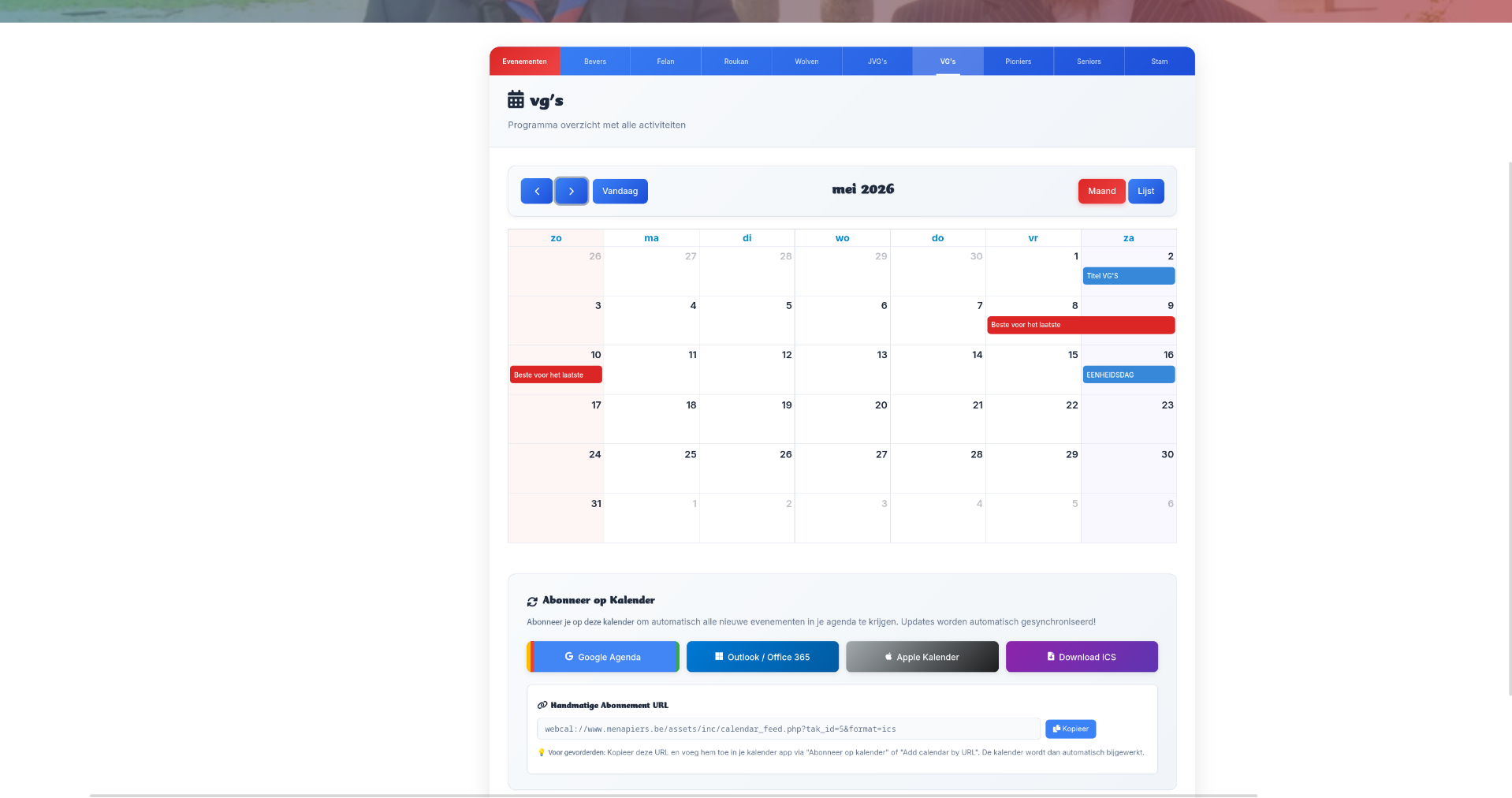

4. Calendar System Module (Kalender)

Full-featured event management system with scheduling, recurring events, and export capabilities. Integrates with external calendar applications.

Calendar Features

Event Scheduling - Create, edit, delete events with date/time management
Recurring Events - Support for daily, weekly, monthly patterns
Event Categories - Color-coded categorization for different event types
Calendar Views - Month, week, day, and agenda views
iCalendar Export - Generate .ics files for external calendar apps
Event Details - Location, description, contact information
Visibility Controls - Public/private event settings
Event Search - Filter and search functionality

Date/Time Handling

European date format (DD-MM-YYYY) with conversion to MySQL format
24-hour time format (HH:MM)
All-day event support
Start and end time validation
Timezone handling

Technical Implementation

Custom date/time conversion functions (convertDateFormat, convertTimeFormat)
Calendar generation with PHP date manipulation
AJAX event loading for dynamic calendar updates
iCalendar format generation for exports
Recurring event logic with date calculation

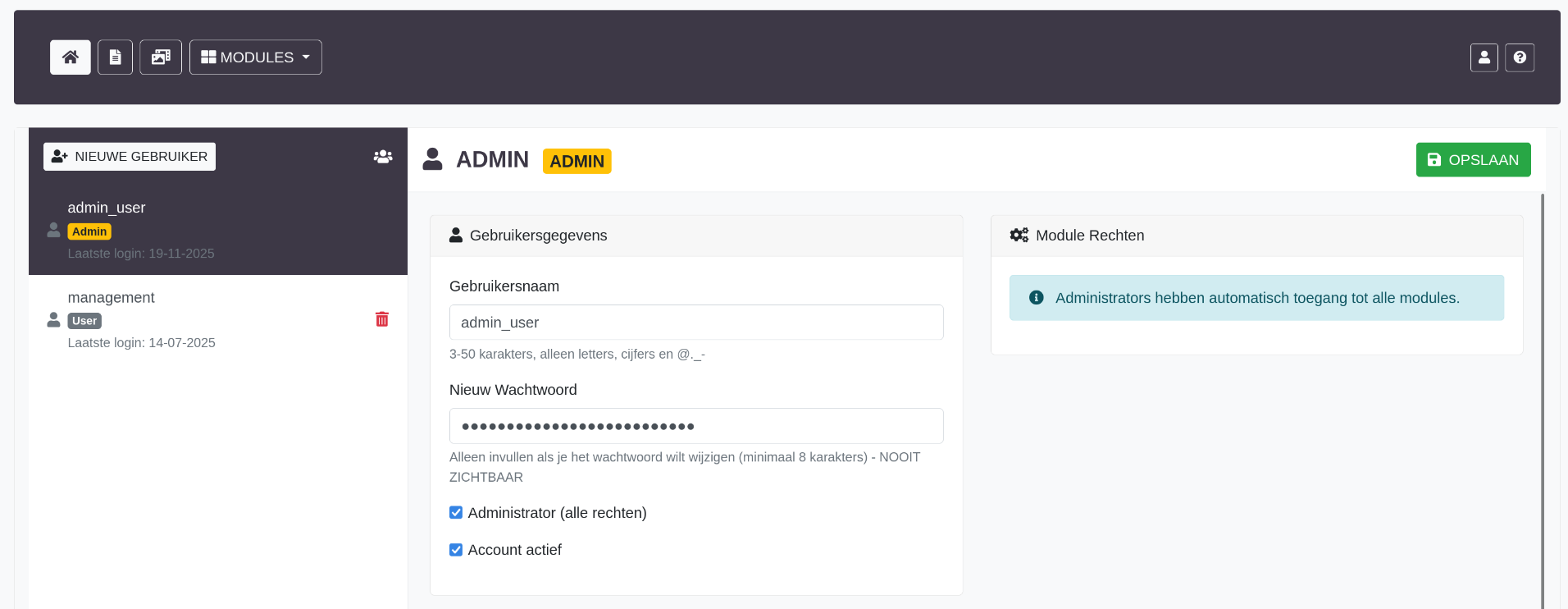

5. User Management Module (Gebruikers)

Complete user administration system with role-based permissions, activity tracking, and security features.

User Management Features

User CRUD Operations - Create, read, update, delete user accounts
Role Management - Multiple permission levels
Activity Tracking - Last login, login IP, failed attempts
Force Password Reset - Admin-initiated password change requirement
Session Management - View and terminate active sessions
User Statistics - Login history and activity reports

Security Features

Failed login attempt counter with automatic lockout
Last failed attempt timestamp tracking
IP address logging for security auditing
Token-based session management with expiration
Secure password reset workflow

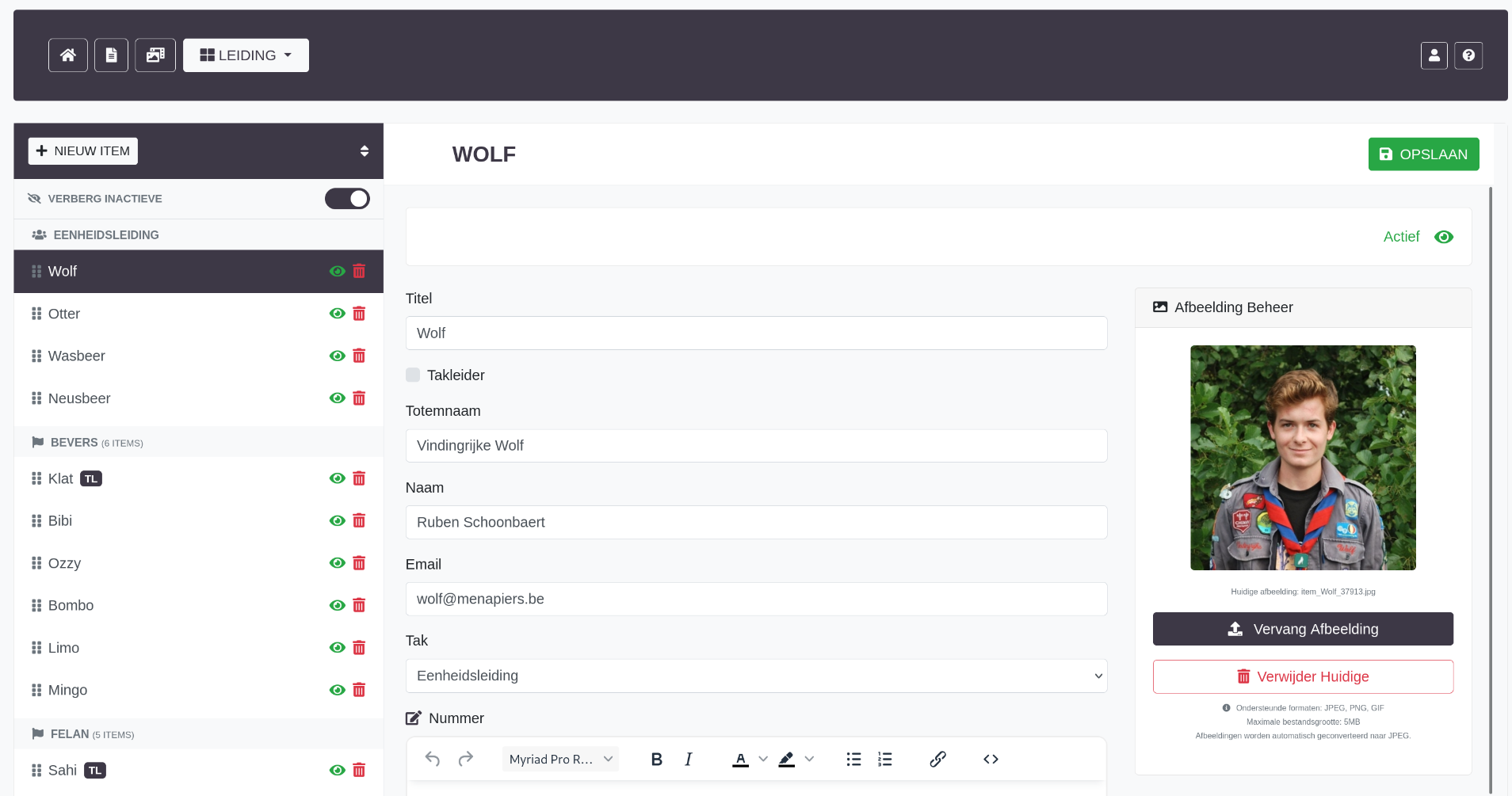

6. Team Management Module (Leiding)

Manage organization leadership and staff member profiles displayed on the public website.

Team Features

Member Profiles - Name, role, bio, photo
Group Assignment - Assign members to different teams/sections
Position Ordering - Control display order on website
Contact Information - Email, phone, social media links
Photo Management - Profile pictures with automatic cropping
Visibility Controls - Show/hide individual members

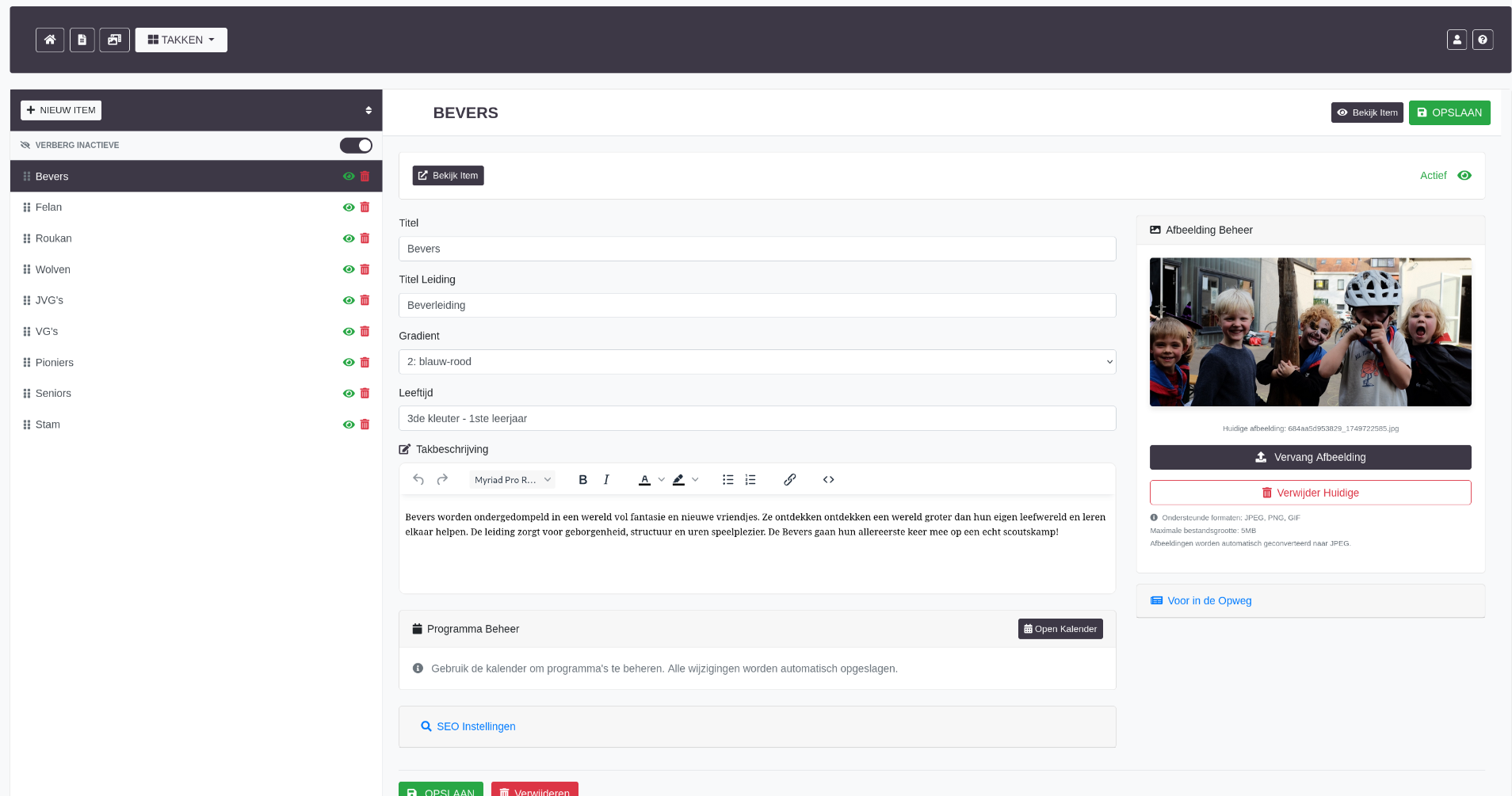

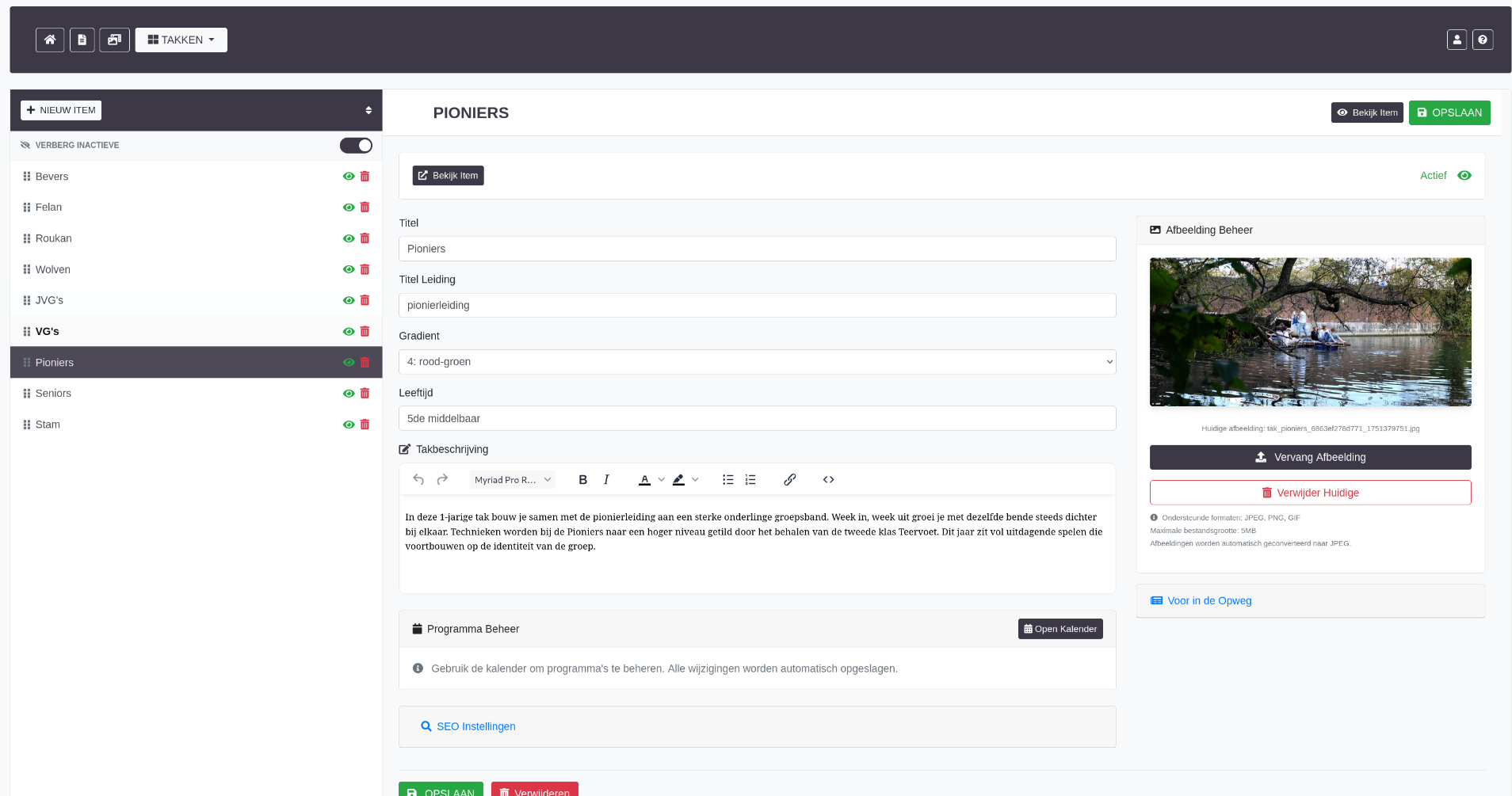

7. Groups Module (Takken)

Management system for different youth groups/sections within the organization (age-based divisions common in scout organizations).

Group Features

Group Profiles - Name, description, age range, meeting times

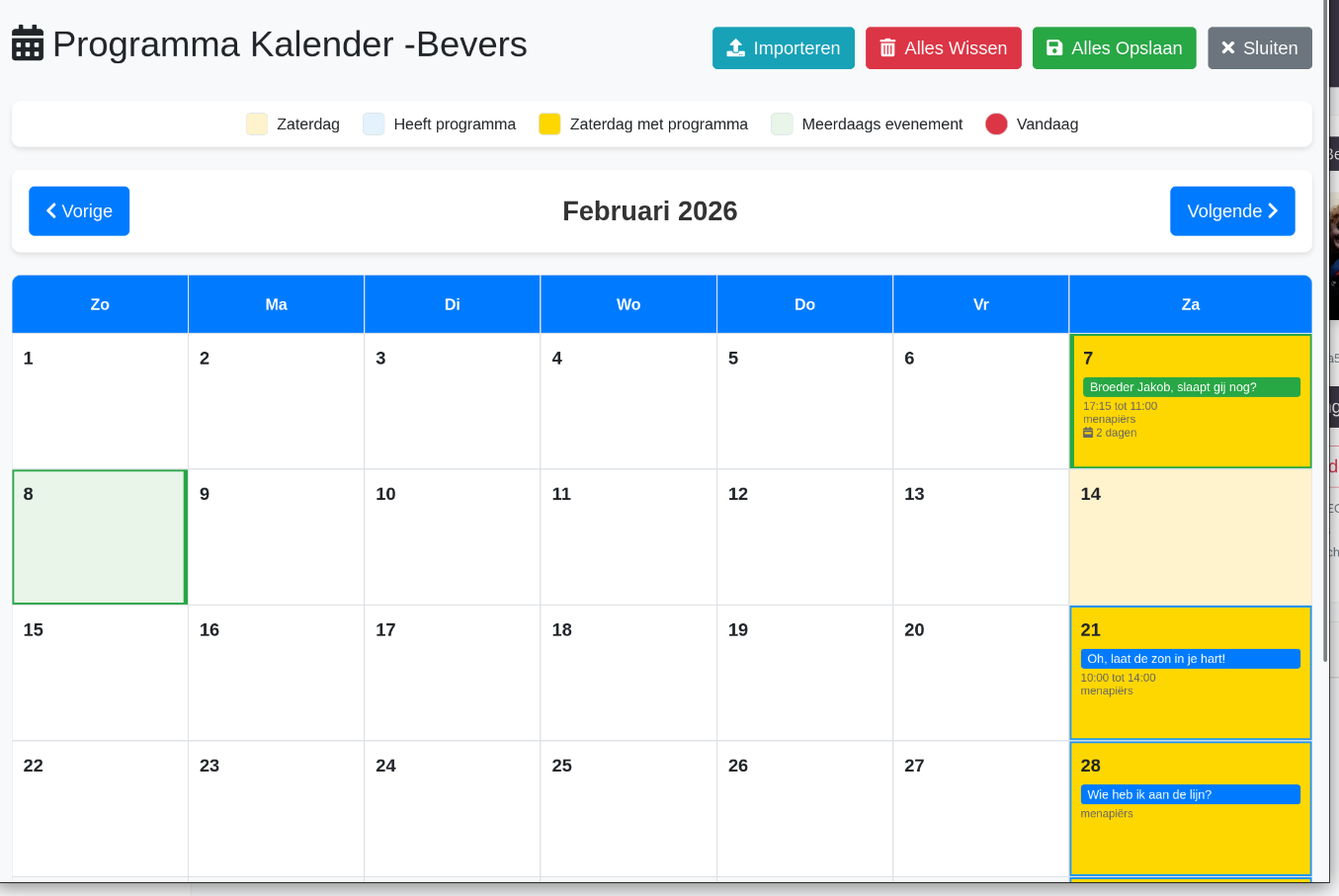

Program Calendar - Activity schedules specific to each group
Import/Export - Bulk program import functionality
Calendar Integration - Group events in main calendar

Technical Implementation

Program calendar with CSV import capability
AJAX-based program management
Integration with main calendar system

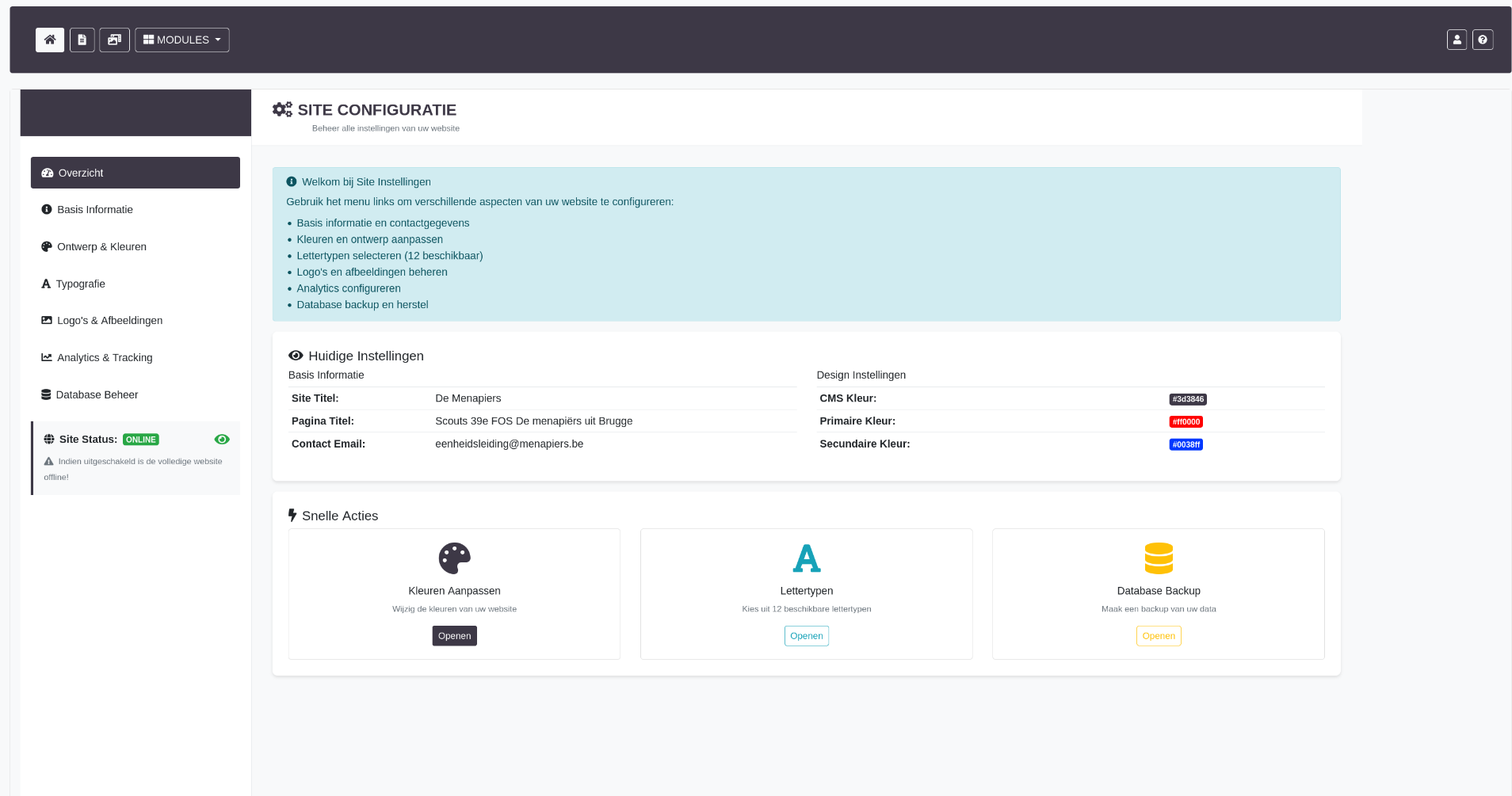

8. Site Settings Module

Global website configuration and customization options.

Settings Features

Site Information - Name, tagline, contact details
Google Analytics - GA4 property ID and service key configuration
Social Media - Links to organization's social profiles
SEO Settings - Default meta descriptions, keywords
Email Configuration - SMTP settings for notifications

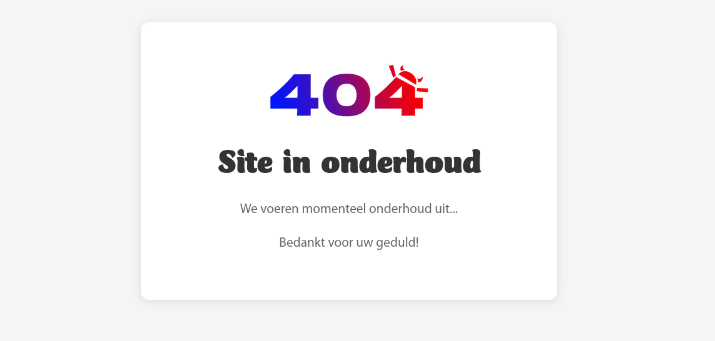

Maintenance Mode - Enable/disable site access

Technical Implementation

Google Analytics API integration with service account authentication
Secure storage of API credentials (JSON service key)
Test connection functionality for API verification

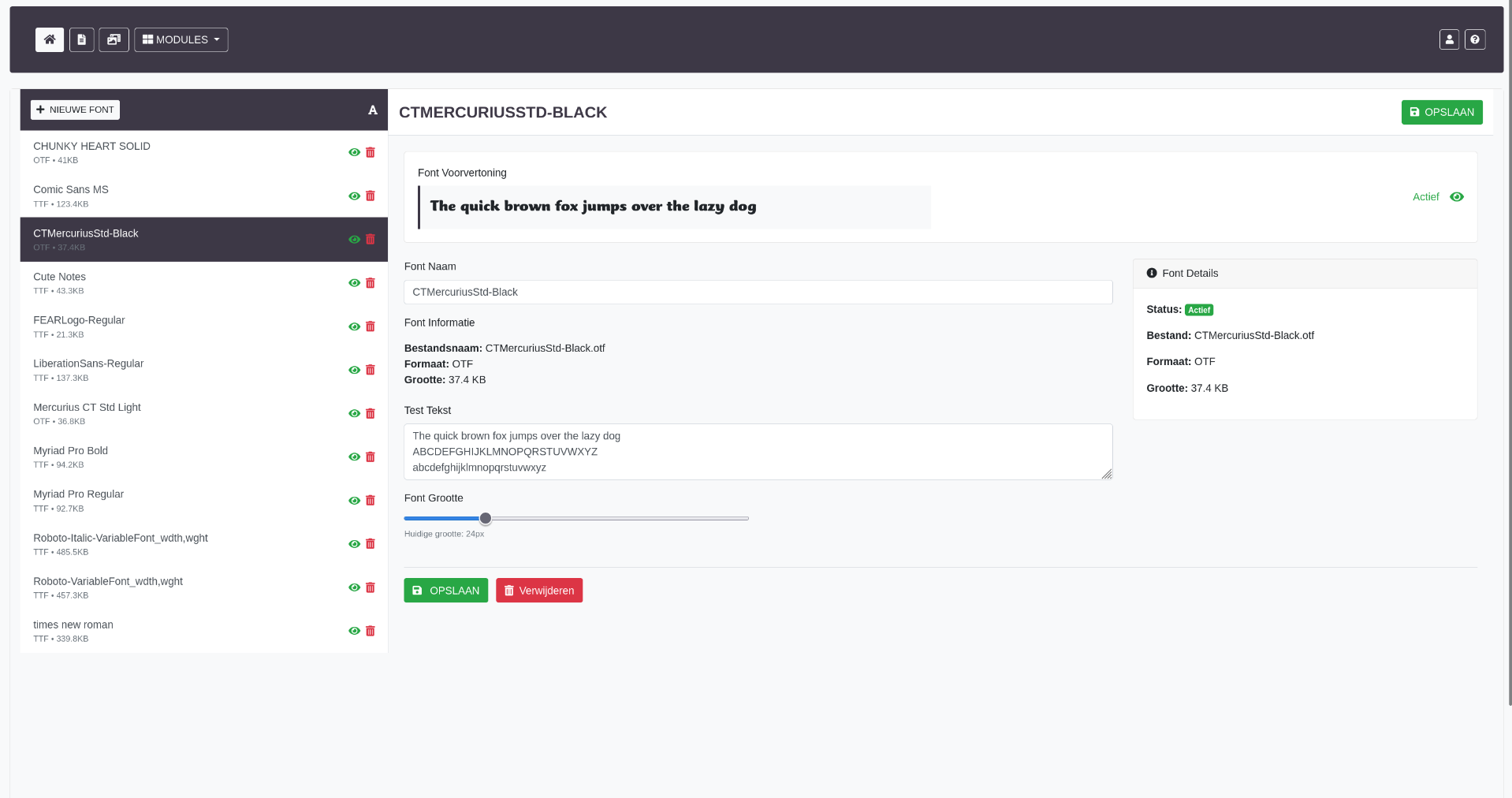

9. Typography Module (Fonts)

Advanced font management system with Google Fonts integration for website customization.

Typography Features

Google Fonts Integration - Browse and select from Google Fonts library
Font Preview - Real-time preview of fonts with sample text
Active Font Control - Enable/disable fonts on website
Font Categories - Heading fonts, body fonts, accent fonts
Weight Selection - Choose font weights (regular, bold, etc.)
Font Pairing - Recommendations for complementary fonts

Technical Implementation

Google Fonts API for font discovery
Dynamic CSS generation for active fonts
Font loading optimization

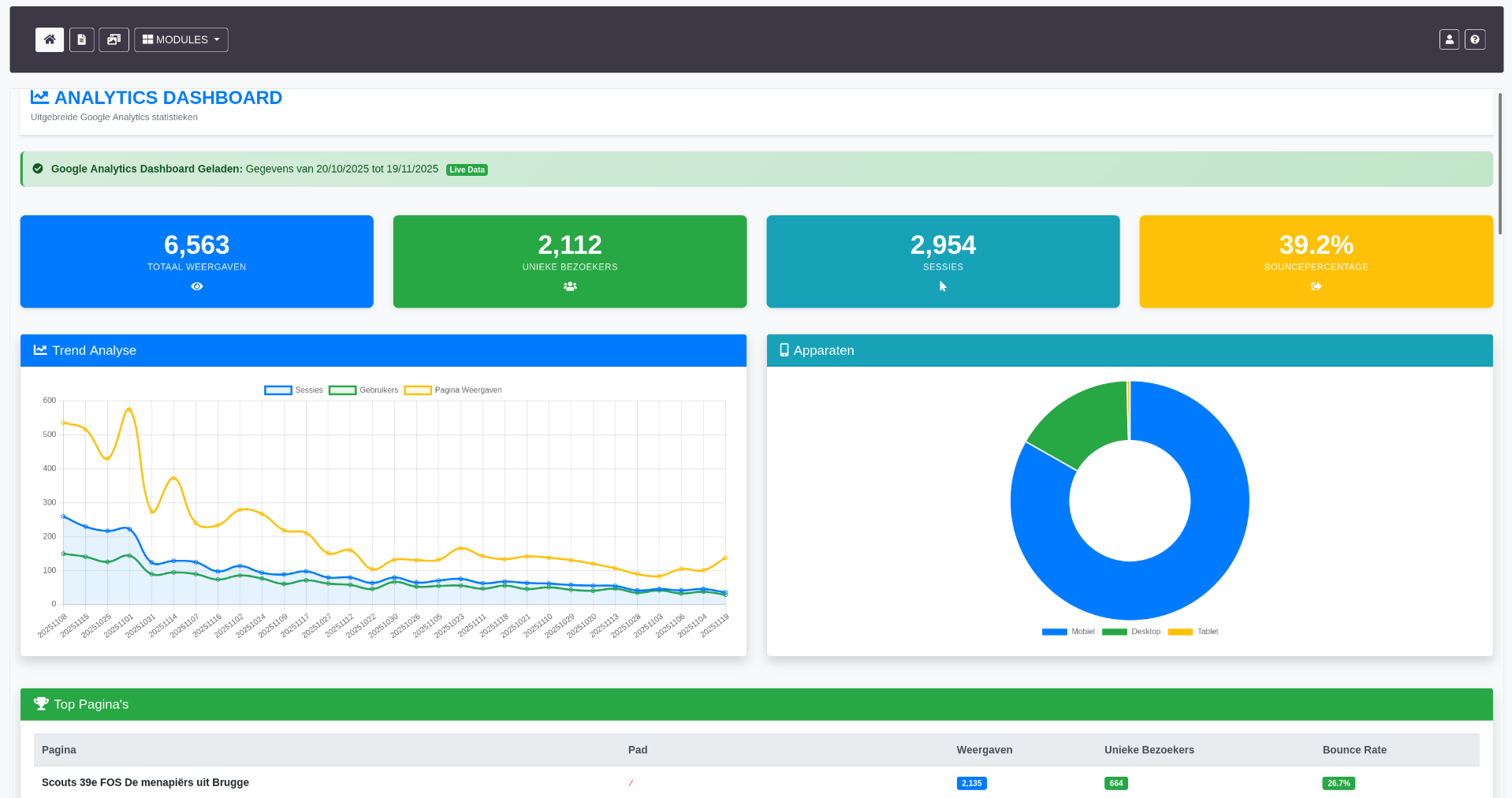

10. Statistics Module (Statistieken)

Comprehensive analytics dashboard integrating Google Analytics 4 data directly into the CMS.

Statistics Features

Real-time Visitors - Current active users on website
Traffic Overview - Sessions, users, pageviews, bounce rate
Page Performance - Most visited pages with detailed metrics
Traffic Sources - Referral sources, direct traffic, search engines
Device Analytics - Desktop, mobile, tablet breakdowns
Geographic Data - Visitor locations and countries
Custom Date Ranges - Flexible reporting periods
Charts and Graphs - Visual data representation

Google Analytics 4 Integration

Service account authentication with JSON key
OAuth 2.0 token generation
Google Analytics Data API v1 beta integration
Multiple report types (overview, pages, traffic sources)
Data caching for performance
Error handling and fallback displays

Technical Implementation

PHP functions for Google API communication (getGoogleAccessToken, getGoogleAnalyticsData)
JWT token generation for service account authentication
CURL requests to GA4 API endpoints
Data parsing and formatting for display
Chart.js or similar for data visualization

11. Social Media Module

Integration and management of social media feeds and content.

Social Media Features

Feed Integration - Display social media posts on website
Multi-platform Support - Facebook, Instagram, Twitter integration
Post Management - Curate which posts appear on site
Embed Controls - Customize appearance of social widgets

12. Labels/Tags Module

Taxonomy system for organizing and categorizing content across the CMS.

Label Features

Tag Creation - Create custom tags/labels
Color Coding - Visual identification with colors
Content Association - Assign labels to pages, events, media
Filter by Label - Quick content filtering
Usage Statistics - See how many items use each label

13. Help System Module (Hulp)

Built-in documentation and help system for CMS users.

Help Features

Module Documentation - Detailed guides for each CMS section
Video Tutorials - Embedded instructional videos
FAQ Section - Common questions and answers
Search Functionality - Find help topics quickly
Contextual Help - Help links within each module

Help Topics Include

Dashboard overview and navigation
Media library usage guide
Social media integration setup
Typography and design customization
Analytics configuration and interpretation
Content flexibility and modules

Advanced Technical Features

WYSIWYG Editor Integration

TinyMCE 6.8 implementation with custom configuration and extensions for content editing.

Editor Features

Custom toolbar with commonly used formatting options
Media picker integration with CMS media library
Table creation and editing
Link management with validation
HTML source code editing for advanced users
Paste from Word with cleanup
Character and word count
Spell checking
Custom CSS classes for styled content

Technical Implementation

Custom TinyMCE configuration in wysiwyg-editor.js
Plugin integration (media, table, link, code)
Custom image browser connecting to media library
Content sanitization on save

Drag-and-Drop Functionality

jQuery UI Sortable implementation throughout the CMS for intuitive content organization.

Sortable Elements

Page Tree - Reorder pages and subpages
Media Grid - Organize images and files
Content Items - Arrange page modules
Navigation Menus - Menu item ordering

Implementation Details

Visual feedback during drag (helper element, placeholder)
AJAX save of new positions
Database position field updates
Smooth animations and transitions
Touch device support

AJAX Architecture

Extensive use of AJAX for dynamic, responsive user experience without full page reloads.

AJAX Operations

Content loading and updating
Form submissions with validation
Real-time search and filtering
Status toggles (active/inactive)
Position updates from drag-drop
File uploads with progress tracking
Delete confirmations and actions

Implementation Pattern

Central JavaScript file (cms-V2-main.js) with common AJAX functions
Module-specific action_ajax.php files for handling requests
JSON responses for data exchange
Error handling and user feedback
Loading indicators during operations

Responsive Design

Mobile-first responsive design approach ensuring usability across all devices.

Responsive Features

Bootstrap 4 responsive grid system
Mobile-optimized navigation (hamburger menus)
Touch-friendly interface elements
Responsive tables with horizontal scrolling
Adaptive forms and input fields
Media query breakpoints for optimal layouts

Device Optimization

Desktop: Full sidebar navigation, multiple columns
Tablet: Collapsible sidebar, adjusted spacing
Mobile: Stacked layout, simplified navigation, larger touch targets

Performance Optimization

Database Optimization

Indexing Strategy - Primary keys, foreign keys, and indexes on frequently queried columns
Query Optimization - Efficient SQL queries with proper JOINs and WHERE clauses
Prepared Statements - Reusable query templates for better performance
Connection Pooling - Efficient database connection management
Query Result Caching - Cache frequently accessed data

Frontend Performance

Lazy Loading - Images and content loaded on demand
Asset Minification - Compressed CSS and JavaScript
CDN Usage - Bootstrap, jQuery, Font Awesome from CDN
Image Optimization - Compressed images with appropriate formats
Browser Caching - Cache headers for static assets

PHP Performance

OPcache enabled for bytecode caching
Session optimization with database storage
Efficient loops and conditionals
Minimal file includes

Development Approach & Code Quality

Coding Standards

Consistent Naming Conventions - CamelCase for JavaScript, snake_case for PHP/SQL
Code Documentation - Comments explaining complex logic
DRY Principle - Reusable functions and components
Separation of Concerns - Clear separation between presentation, logic, and data
Error Handling - Try-catch blocks and proper error logging

Reusable Components

Include Files - Shared PHP includes for headers, menus, scripts
Function Library - Common functions in functions.php (goToPage, getCurPageUrl, etc.)
CSS Classes - Reusable styles in cms-V2-main.css

Version Control

Git repository with meaningful commit messages
Branch strategy for feature development
Commit history tracking changes and improvements

Technical Challenges Overcome

Challenge 1: Session Management

Problem: Complex session handling with token-based authentication across multiple devices and browsers.

Solution: Implemented database-backed session tokens with expiration tracking, IP address validation, and automatic cleanup of expired sessions.

Challenge 2: WYSIWYG Editor Customization

Problem: Integrating TinyMCE with custom media library and maintaining clean HTML output.

Solution: Custom TinyMCE plugins for media browser integration, content sanitization on save, and restricted HTML elements for consistency.

Challenge 3: Drag-and-Drop Performance

Problem: Smooth drag-drop experience with large lists while maintaining accurate position updates.

Solution: Optimized jQuery UI Sortable configuration, AJAX batch updates, and visual feedback during operations.

Challenge 4: Google Analytics Integration

Problem: Complex OAuth 2.0 authentication with service accounts and GA4 API structure.

Solution: Custom PHP functions for JWT token generation, secure credential storage, and comprehensive error handling for API failures.

Challenge 5: Responsive CMS Interface

Problem: Creating a content management interface that works well on tablets while optimized for desktop.

Solution: Bootstrap customization with module-specific media queries, collapsible sidebars, and touch-optimized controls.

Key Takeaways & Learning Outcomes

Technical Skills Demonstrated

Full-stack web development (PHP, MySQL, JavaScript, HTML/CSS)
Database design and normalization
RESTful API development and integration
Security best practices and implementation
Responsive web design and mobile optimization
Third-party API integration (Google Analytics, Google Fonts)
User authentication and authorization systems
File upload and media management
AJAX and asynchronous programming
Version control with Git

Soft Skills Demonstrated

Client communication and requirements gathering
Project planning and timeline management
User training and documentation
Problem-solving and debugging
Attention to detail and code quality

Frontend changes

Alongside the complete overhaul of the CMS, I introduced a wide range of frontend improvements. Because the original website was quite outdated, many of its components were no longer compatible with modern browsers. To address this, I updated the codebase to ensure smooth performance across all current browsers, while still preserving functionality for users on older systems. In addition, I applied important security updates and refined the overall layout and usability of the site.

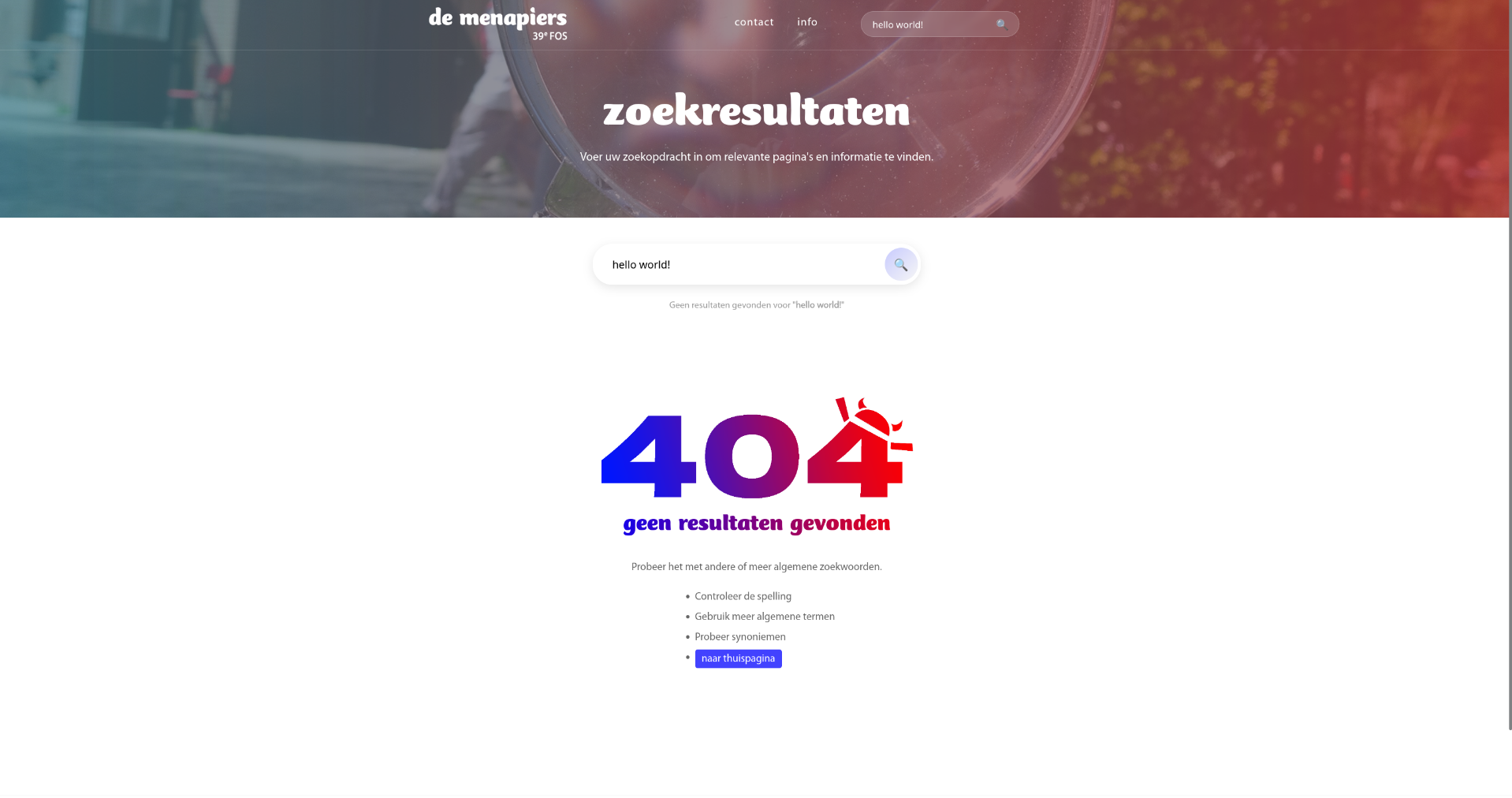

Search function

The previous version of the website did not include a search function, which made navigating the content far more difficult than it needed to be. To improve usability, I developed and integrated a fully functional search feature, allowing users to quickly find the information they’re looking for and enhancing the overall browsing experience.

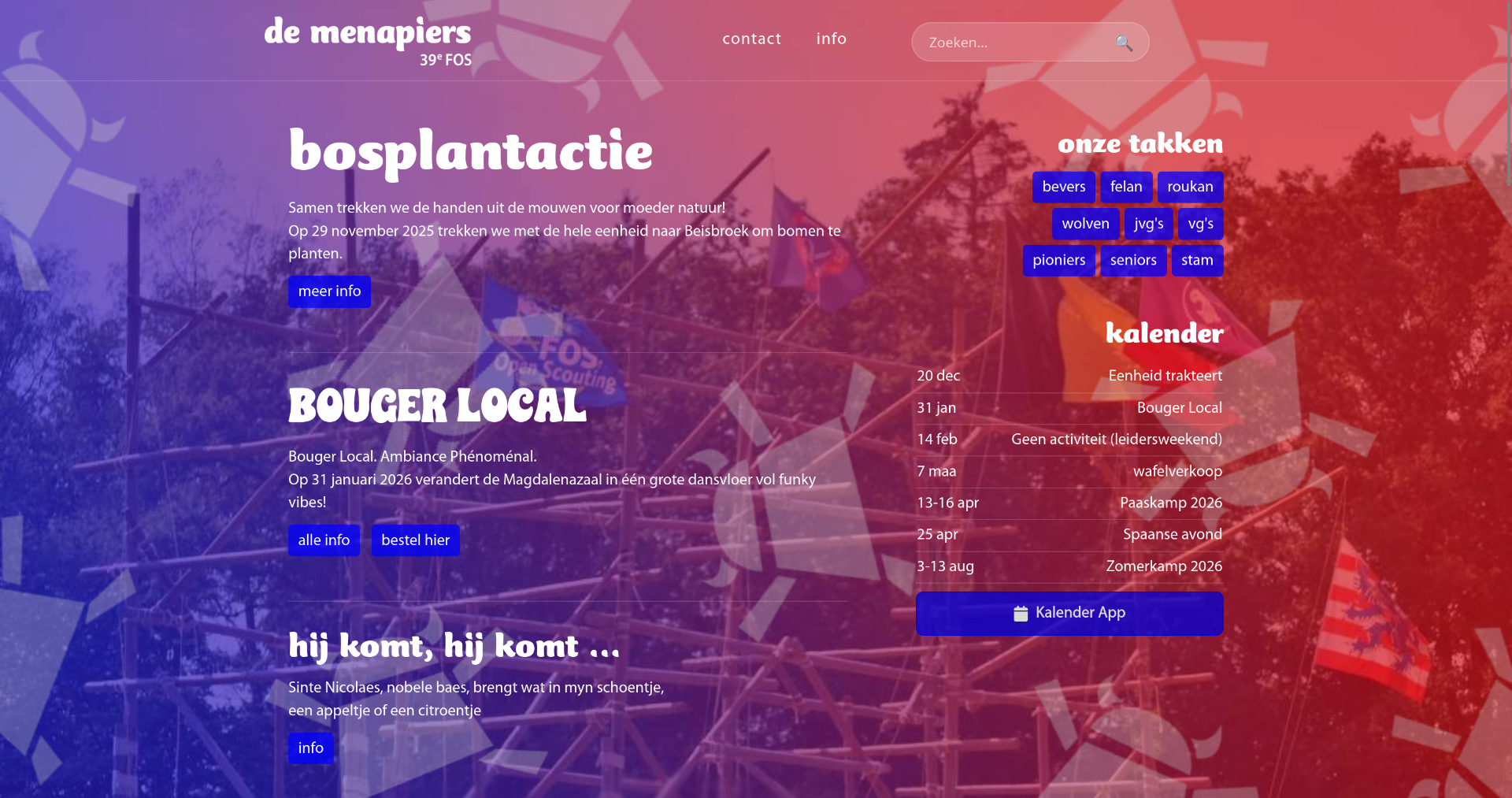

Calendar & Scheduling Improvements

To make it easier for parents to stay informed, I introduced calendar section that provides a clear, organized overview of all upcoming events and activities. This new layout allows parents to quickly find the information they need without having to navigate through multiple pages.

I also added convenient calendar integration features, allowing users to import events directly into Google Calendar, Apple Calendar, Outlook/Office 365. These import options ensure that any updates made in the system are automatically synced to their personal calendars, making schedule changes effortless and reliable.

This upgrade was very well received, as it significantly streamlined communication.

Conclusion

This custom CMS project represents a comprehensive full-stack web development effort spanning database architecture, backend development, frontend design, security implementation, and user experience optimization. The complete overhaul of a production system for an active non-profit organization required balancing technical excellence with practical considerations such as data migration, user training, and maintaining organizational continuity.

The resulting system is a robust, secure, maintainable, and user-friendly content management platform that effectively serves the organization's needs.

This CMS continues to serve the organization effectively, managing their complete web presence, and serving their community with reliable, secure content delivery.
