Key Features

It includes components for writing and managing data on the RFID tag, modern power input options, and flexible microcontroller integration.

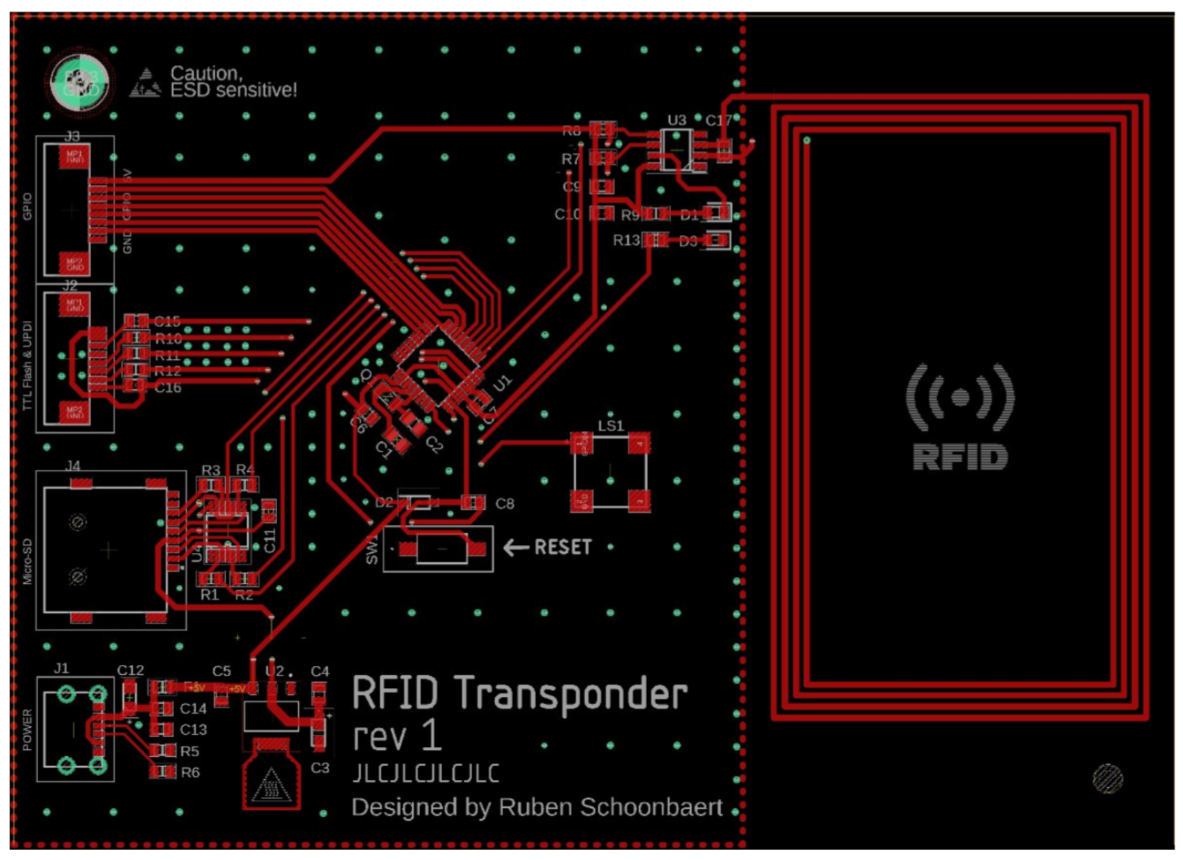

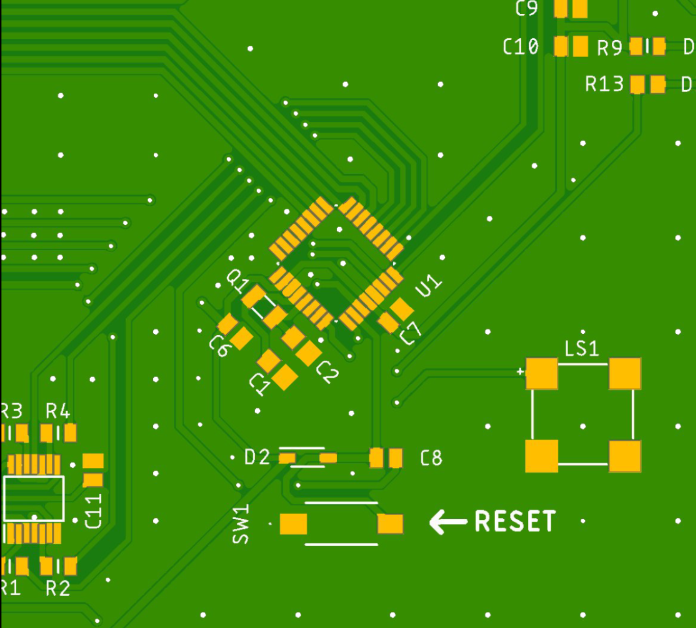

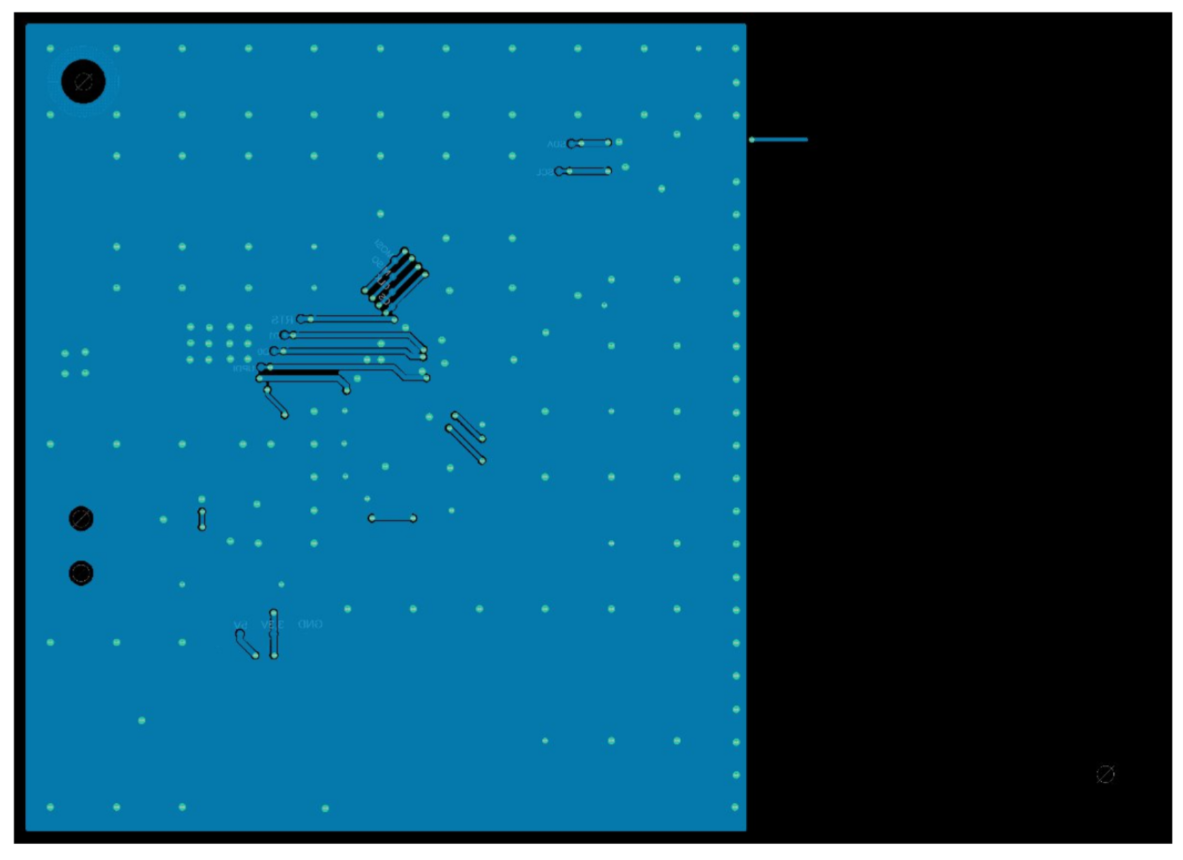

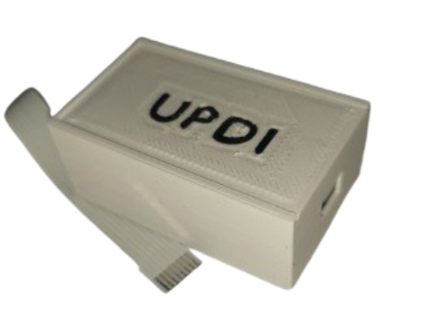

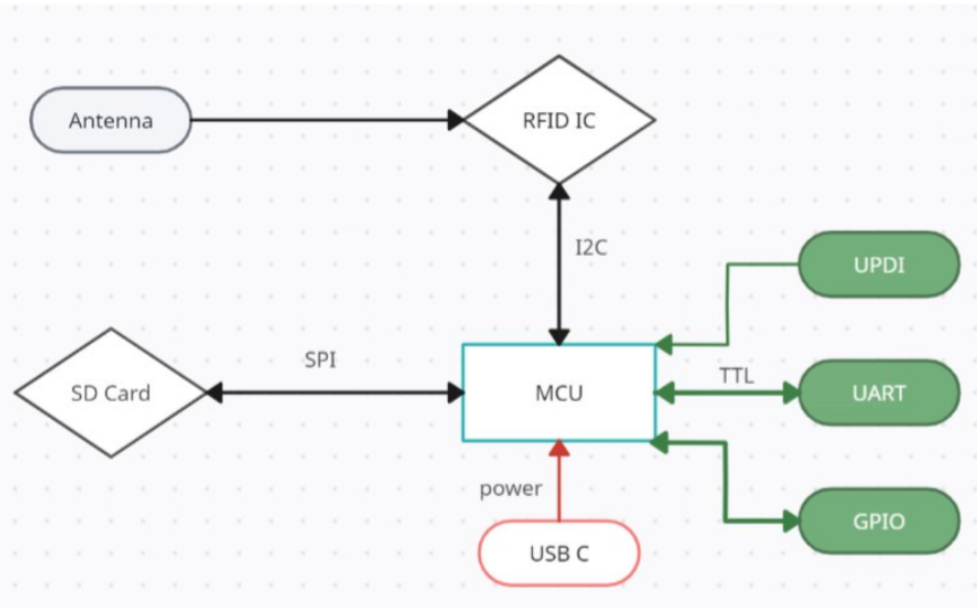

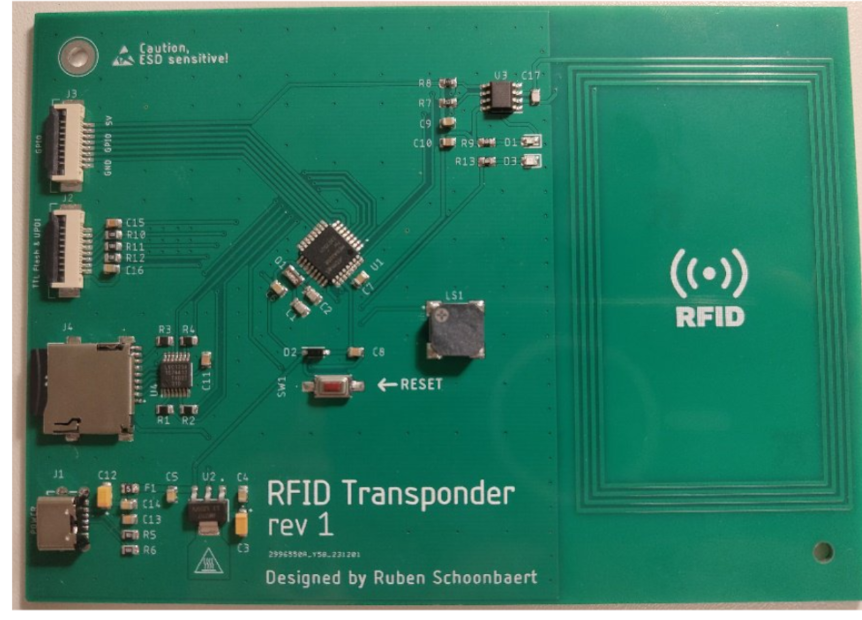

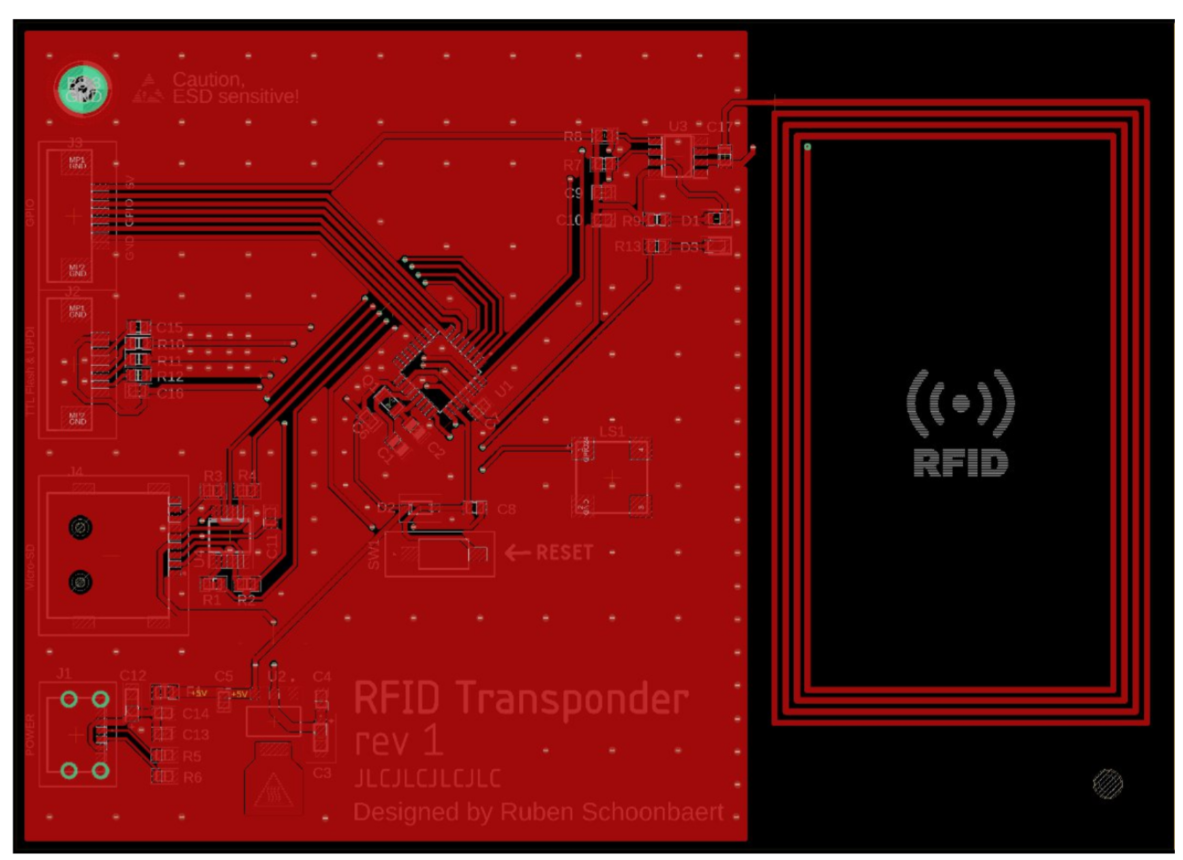

RFID/NFC Tag FunctionalityBuilt-in RFID coil, designed using eDesignSuite by ST-Engineering.Integrated with the ST25DV04KC RFID/NFC Tag IC, offering:16 KB EEPROM for data storage.Communication via the I2C bus.Data can be written to the tag using external devices, such as smartphones with RFID capabilities.Data Storage SupportIncludes a Micro SD card slot for additional data storage.Utilizes a 74LVC125 IC for safe voltage level shifting between the 5V logic of the microcontroller and the 3.3V logic of the Micro SD card.Power InputPowered via a USB-C port delivering 5V.Configured with 1 kΩ resistors on the CC pins to ensure USB-C standard compliance.Flexible Microcontroller IntegrationDesigned around the AtmegaXX08 series of microcontrollers, specifically the Atmega3208.Compatible with other ICs in the same series and package.ConnectivityProvides connectors for UPDI and UART for programming and debugging.Optional GPIO breakout for additional interfacing needs.

Applications

Use as an RFID/NFC tag in systems requiring dynamic, writable RFID data storage. Embedded designs requiring compact, integrated EEPROM and I2C functionality. Systems needing programmable and customizable tag IC solutions.

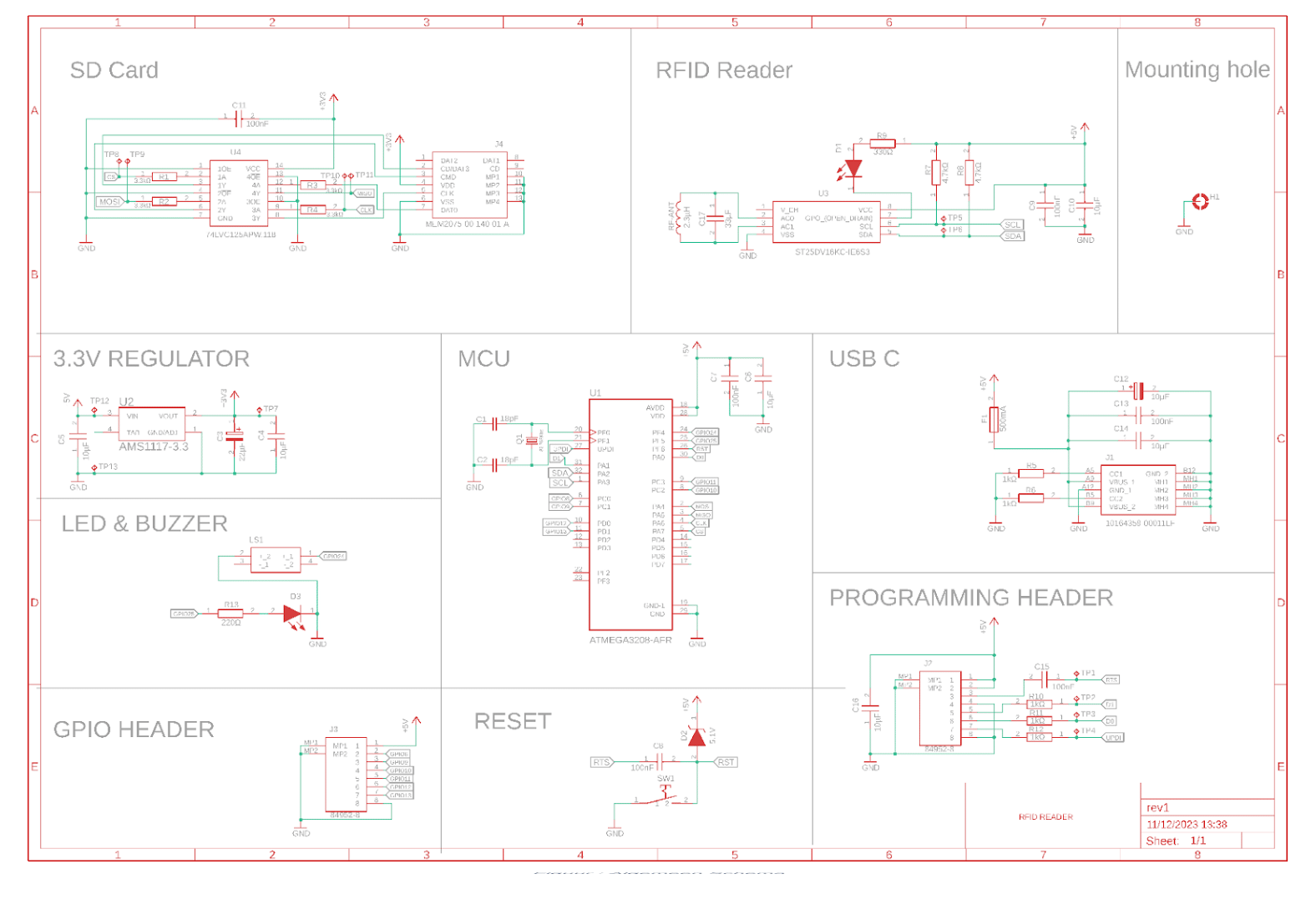

Schematic
